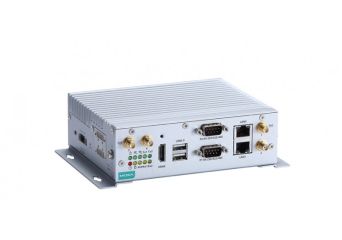

V2201

CPU

V2201-E1 Series: Intel® Atom™ Processor E3815 (Single Core, 512K Cache, 1.46 GHz)
V2201-E2 Series: Intel® Atom™ Processor E3826 (Dual Core, 1M Cache, 1.46 GHz)
V2201-E4 Series: Intel® Atom™ Processor E3845 (Quad Core, 1M Cache, 1.91 GHz)

OS

Windows Embedded Standard 7 64-bit or Linux Debian 7 64-bit

System Memory

1 DDR3 SO-DIMM slot, 8 GB max.• E3815 and E3826 support DDR3L-1066
• E3845 supports DDR3L-1333

USB

mSATA

1 internal mini-PCIe socket for OS storage

SD

1 SD 3.0 (SDHC/SDXC) socket for storage expansion*

*W7E only supports SD 2.0

• Audio

Output

Line-out interface (together with HDMI)

• Other Peripherals

Expansion Slot

2 Mini-PCIe sockets• 1 USB signal, for Sierra Wireless 3G/LTE module
• 1 USB + PCIe signal

μSIM

1 μSIM slot

• Display

Graphics Controller

Intel® HD (integrated)

Connector Type

1 HDMI connector (type A)

Display Interface

Supports HDMI 1.4a, 1920 x 1080 pixels @ 60/24 bpp

• Ethernet Interface

LAN

Auto-sensing 10/100/1000 Mbps ports (RJ45) x 2

Isolation Protection

1.5 kV

• Wireless SMA Interface

Wi-Fi

2 SMA connectors

3G/LTE

2 SMA connectors

GPS

1 SMA connector

• Serial Interface

Serial Standards

RS-232/422/485 software selectable ports (DB9 male) x 2

• Serial Communication Parameters

Data Bits

5, 6, 7, 8

Stop Bits

1, 1.5, 2

Parity

None, Even, Odd, Space, Mark

Flow Control

RTS/CTS, XON/XOFF

Baudrate

50 bps to 115.2 kbps

• Serial Signals

RS-232

TxD, RxD, DTR, DSR, RTS, CTS, DCD, GND

RS-422

TxD+, TxD-, RxD+, RxD-, GND

RS-485-4w

TxD+, TxD-, RxD+, RxD-, GND

RS-485-2w

Data+, Data-, GND

• Digital Input

Input Channels

DI x 4, source type

Input Voltage

0 to 30 VDC at 25 Hz

Digital Input Levels for Dry Contacts

Logic level 0: Close to GND
Logic level 1: Open

Digital Input Levels for Wet Contacts

Logic level 1: +3 V max
Logic level 0: +10 V to +30 V (Source to DI)

Connector Type

10-pin screw-fastened Euroblock terminal

Isolation

3 kV optical isolation

• Digital Output

Output Channels

DO x 4, sink type

Output Current

Max. 200 mA per channel

On-state Voltage

24 VDC nominal, open collector to 30 VDC

Connector Type

10-pin screw-fastened Euroblock terminal

Isolation

3 kV optical isolation

• LEDs

System

Power, user-defined

Storage

mSATA, SD

LAN

2 LEDs per port (100/1000 Mbps)

Serial

2 LEDs per port (Tx and Rx)

Wireless

Mini-PCIe 1, Mini-PCIe 2

• Switches and Buttons

Power Switch

on/off (left-side panel)

Reset Button

For warm reboot (left-side panel)

• Physical Characteristics

Housing

Aluminum

Weight

940 g

Dimensions

Without ears: 150 x 48.8 x 120.2 mm (5.91 x 1.92 x 4.73 in)
With ears: 178 x 52.5 x 120.2 mm (7.01 x 2.07 x 4.73 in)

Mounting

DIN rail, wallmount

• Environmental Limits

Operating Temperature

• E1/E2 models: -40 to 85°C (-40 to 185°F)
• E4 models: -40 to 70°C (-40 to 158°F)
• E1-W/E2-W/E4-W models with Moxa recommended wireless modules (3G/LTE + Wi-Fi) installed: -40 to 70°C (-40 to 158°F)

Storage Temperature

-40 to 85°C (-40 to 185°F)

Ambient Relative Humidity

5 to 95% (non-condensing)

Anti-Vibration

5 Grms, 5 Hz to 500 Hz, 1 hr/axis w/ mSATA, SD

Anti-Shock

100 g/11ms ±X, ±Y, ±Z, 3 shocks each axis w/ mSATA, SD

• Power Requirements

Input Voltage

9 to 36 VDC (3-pin terminal block for V+, V-, SG)

Power Consumption

18 W (2 A @ 9 VDC)

• Standards and Certifications

Safety

UL 60950-1, CSA C22.2 No. 60950-1-03 (60950-1-07), EN 60950-1, CCC, UL 508

EMC

EN 55022 Class A, EN 61000-3-2 Class D, EN 61000-3-3, EN 55024, FCC Part 15 Subpart B Class A, EN 61000-6-2*,
EN 61000-6-4*

Green Product

RoHS, CRoHS, WEEE

*Passed with AC/DC adapter.

• Reliability

Automatic Reboot Trigger

Software-programmable watchdog timer configurable from 1 to 255 seconds

• Warranty

Warranty Period

3 years

Details

See www.moxa.com/warranty

Note: These hardware specifications describe the embedded computer unit itself, but not its official accessories. In particular, the wide temperature specification does not apply to accessories such as power adapters and cables.

Software Specifications

• Linux

OS

Linux Debian 7

Web Server (Apache)

Allows you to create and manage web sites; supports PHP and XML

Terminal Server (SSH)

Provides secure encrypted communications between two un-trusted hosts over an insecure network

File System

EXT 4

Internet Protocol Suite

TCP, UDP, IPv4, SNMPv1/v2c/v3, ICMP, ARP, HTTP, SSH 1.0/2.0, SSL, DHCP, NTP, NFS, Telnet, FTP, TFTP, PPP, PPPoE

Internet Security

OpenVPN, iptables firewall

Secure Shell for Remote Access

SSH allows remote logins to a secure encrypted console from any connected network

Dial-up Networking

PPP Daemon for Linux that allows Unix machines to connect to the Internet through dialup lines, using the Point-to-Point Protocol (PPP). Works with ‘chat’, ‘dip’, and ‘dialu dip’, and ‘diald’, among (many) others. Supports IP, TCP, UDP

File Server

Enables remote clients to access files and other resources over the network

Watchdog

A watchdog timer that triggers a system reset upon software freezes, for both specific applications and system-wide failures.

Application Development Software

• Moxa API Library
• GNU C library
• Perl

Embedded Self-Health Maintenance Software

Moxa Proactive Monitoring

• Windows Embedded Standard 7

Core OS

• 64-bit support
• Remote Client
• Remote Procedure Call

Applications and Services Development

• Remote Desktop Protocol 7.1
• COM OLE Application Support
• COM+ Application Support
• MSMQ

Internet Services

• Internet Explorer 8.0
• IIS 7.0

Diagnostics

• Common Diagnostic Tools
• Problem Reports and Solutions

Fonts

Western, Middle Eastern, South East Asian, and South Asian FontsRailway Computers 4 www.moxa.com

Graphics and Multimedia

• MPEG Layer-3 Audio Codecs (MP3)
• MPEG4 Decoders
• DirectX and Windows Device Experience

Management

• Group Policy Management
• Windows Management Instrument (WMI)
• Windows Update

Networking

• Extensible Authentication Protocol (EAP)
• Internet Authentication Service
• Telnet Server
• Bluetooth
• Domain Services
• Network Access Protection
• Network and Sharing Center
• Quality of Service
• Remote Access Service (RAS)
• Telephony A

Security

• Credential Roaming Service
• Credentials and Certificate Management
• Windows Authorization Manager (AZMAN)
• Windows Security Center
• Active Directory Rights Management
• Security Base
• Encrypted File System (EFS)

Embedded Features

• Enhanced Write Filter (EWF)
• File-Based Write Filter (FBWF)
• Registry Filter
• WSDAPI for .NET

File Systems and Data Store

• Windows Data Access Components
• Windows Backup and Restore

Maintenance

Moxa Proactive Monitoring & Moxa Smart Recovery
