AB9007

Name: AB9007
Brand: Anybus
SKU: 82262

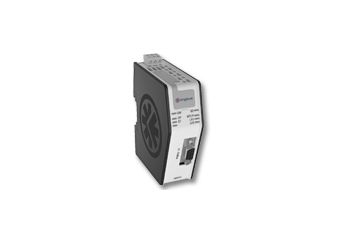

AB9007 ModbusTCP Master/Client - Profinet IO Device

Producent: Anybus

AB9007 ModbusTCP Master/Client - Profinet IO Device

Slim housing
Downlink Live List providing Modbus-TCP transaction status to uplink PLC
Control and Status words for downlink network control/status
Individual Modbus-TCP server port number setting
Up to 64 server connections and transactions
Modbus-TCP 10 mS minimum scan time with dynamic bandwidth calculation
Byte Swap feature
Full Modbus address range (1-65536)
Live List and Control/Status words in I/O data
SD-card for configuration copy, Easy Replacement and backup (pending)
2 port switch on Modbus-TCP and Profinet IO allows "daisy chaining" on both networks
Profinet IO side supporting SNMP with support for the following mibs: LLDP and MIB-II
Profinet IO fast start-up supported

Cena od 3 279,00 zł netto

Wysoka cena? Zaloguj się i kupuj taniej

W magazynie

Przy złożeniu zamówienia do godziny 15:00, wysyłka kurierem DHL jeszcze tego samego dnia

Darmowa dostawa od 500 zł

Pokaż 1 model

Promocja cenowa na model HDR-15-5

Produkt przeznaczony wyłącznie do zastosowań profesjonalnych

Modele
Opis
Specyfikacja
Pliki do pobrania
Baza wiedzy
Polecane produkty

AB9007

Modele

Model	Dostępność	Gwarancja	Schowek	Twoja cena	Twoja cena	Ilość produktów Dodaj
ABC3213-A Modbus TCP Client – PROFINET slave	W magazynie	Gwarancja:		3 279,00 zł 4 033,17 zł Zaloguj się, aby poznać swoją cenę	Zaloguj się, aby poznać swoją cenę	szt.

ABC3213-A

Modbus TCP Client – PROFINET slave

Dostępność:

W magazynie

Cena netto:

3 279,00 zł

Zaloguj się, aby poznać swoją cenę

Opis

The new Anybus X-gateway Modbus-TCP series makes it possible to integrate Modbus-TCP devices into almost any other PLC system and their supported networks. The X-gateway provides Modbus-TCP server connectivity to all major fieldbus and industrial Ethernet networks. Get up and running quickly with easy setup made in just a few steps.

Modbus-TCP is used for communication between intelligent devices, sensors and instruments; to monitor field devices using PCs and HMIs. Typical industry usage includes: Factory Automation, Transportation, Infrastructure, Energy Distribution, Oil and Gas and Manufacturing.

It is an intelligent gateway platform, which provides one side of the gateway with a Modbus-TCP Client (Master) interface and any one of 9 different fieldbus/Ethernet Slave interfaces on the other side. It basically forwards I/O data from one network to the other and vice versa.

Configuration is made with a standard web-browser. An easy-to-use tool for TCP/IP configuration is also available, the Anybus IPconfig. The uplink fieldbus or Ethernet slave interface to the PLC is configured with a standard device description file (GSD/EDS) in the PLC engineering tool.

Profinet IO
With a broad range of devices supported, the Anybus X-gateway Modbus-TCP for Profinet IO provides the user with one of the most comprehensive solutions for solving Profinet IO to Modbus-TCP connectivity. In order to optimize the user experience, HMS provides free worldwide technical support for all of its products.

Specyfikacja

Specyfikacja techniczna

Size:	110 mm x 35 mm x 101 mm
Power Supply:	24VDC (-15% +20%)
Temperature:	-25 to +70°C
Current Consump:	typical 150 mA
I/O Input:	256 bytes
I/O Output:	256 bytes
Mech Rating:	IP20
Modbus-TCP baud rate:	10 Mbit/s and 100 Mbit/s (auto detect)
Wall Mount Bracket:	Order number 021520-B
SD-card:	Order number 021530-B (industrial grade)
Product availability:	July 2011
Order Code:	AB9007
