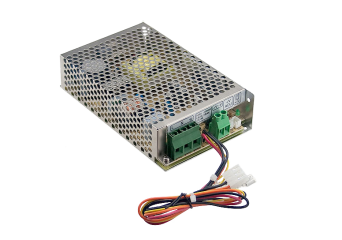

SCP-75

Enclosed single output power supply: SCP-75-12, SCP-75-24

Producent: MEAN WELL
Producent: MEAN WELL
  • Universal AC input/Full range
  • Protections: Short circuit / Overload / Over voltage / Battery polarity protections (by fuse)
  • Built-in temperature compensation function
  • Output voltage detection signal
  • Cooling by free air convection
  • LED indicator for power on
  • Suitable for installation in metallic or non-metallic system enclosure
  • 100% full load burn-in test
Cena od 105,00 zł netto

Wysoka cena? Zaloguj się i kupuj taniej

W magazynie

Przy złożeniu zamówienia do godziny 15:00, wysyłka kurierem DHL jeszcze tego samego dnia

Darmowa dostawa od 500 zł

Pokaż 2 modele

Promocja cenowa na model HDR-15-5

Modele

Opis

SCP series power supplies are intended for operation in monitoring systems, access control, alarm systems, etc. In conjunction with an external battery, they ensure uninterruptible power supply. During normal operation, the power supply charges the connected battery, and in the event of a mains voltage failure, it uses the energy stored in it to power the receiver. Additionally, it has a connector for connecting a thermistor to compensate for voltage depending on the ambient temperature, and a wire connector that signals a voltage loss.

Specyfikacja

  • SCP-75: 75W -output with battery charging DETAILS

    Model Output Tolerance Ripple & noise Efficiency Max power Dimension
    SCP-75-12 13.8V, 0~5.4A +/-1% 120mV 81% 75W 159x97x38mm
    SCP-75-24 27.6V, 0~2.7A +/-1% 200mV 85% 75W 159x97x38mm
